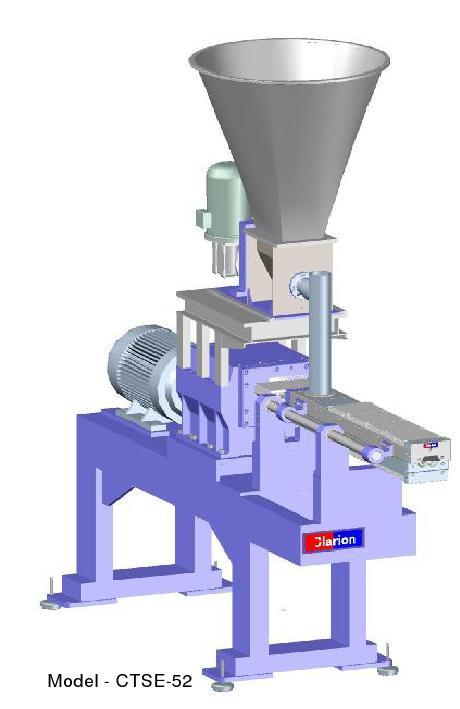

Twin Screw Extruder

Twin Screw Extruder
Twin Screw Extruder
Product Code : 01
Product Description

Twin Screw Extruder

Features

  • Very Economically priced
  • Machine barrel is CNC machined for Water Cooling Jacket for effective cooling
  • Strong and Robust design of Gear box for heavy duty Kneading at High Speeds
  • Easy to clean design
  • All Individual Controls for heaters & cooling section for accurate Temp. Control
  • Gear Box is fitted with Oil Circulating Cooling Pump
  • Additional (Thermal) Heat transfer unit provided for energy savings
  • Very Effective design for better Result of heavy as well as light mixing
  • All wear parts Are manufactured from a very Special Steel for High Wear resistance. Also Coated for better wear life.
  • Segmented Screw Elements & liners to reduce the wear & tear operating cost
  • Easy for changing of complete Element screw shaft
  • Very strong design back up all machines technology upgradation.
  • Very Wide range of production Capacity for Powder Coatings Section from 25 Kg/ hr. To 1500 Kg/Hr. Machines.

Technical Specifications

Model No.

7 Scre w Dia. Mm

L/D ratio

Main Motor Kw

Feed Motor Kw

Heaters Kw

Max. RPM of Screw

Do/Di ratio

Typical Output Range Kg./ Hr.

CTSE-24

24.0

18

5

0.37

4

700-900

1.66

25-40 kg/hr

CTSE-52

52.0

18

22

1.5

8

500-600

1.62

200-300 kg/hr

CTSE-52-A

52.0

20

37

3.75

12

800-900

1.62

250-500 kg/hr

CTSE-60

60.0

20

55

5.6 Twin

16

500-650

1.66

400-750 kg/hr

CTSE-68

68.0

20

75

7.5 Twin

20

600-800

1.70

900-1500 kg/hr
