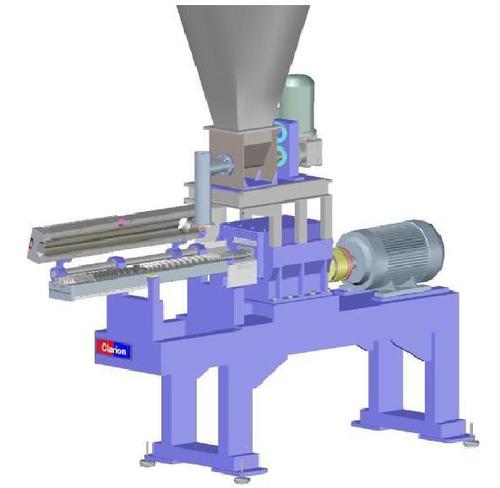

Twin Screw Extruder

Twin Screw Extruder
Twin Screw Extruder
Product Code : 06
Product Description

Twin Screw Extruder

Features

  • Very Economically priced
  • Robost & strong design of Gear box for heavy duty Kneading at High Speeds
  • Machine barrel is CNC machined for Water Cooling Jacket for effective cooling
  • Easy to clean design
  • All Individual Controls for heaters & cooling section for accurate Temp. Control
  • Additional (Thermal) Heat transfer unit provided for energy savings
  • Gear Box is fitted with Oil Circulating Cooling Pump
  • Very Effective design for better Result of heavy as well as light mixing
  • Segmented Screw Elements & liners to reduce the wear & tear operating cost
  • All wear parts Are manufactured from a very Special Steel for High Wear resistance. Also Coated for better wear life.
  • Easy for changing of complete Element screw shaft
  • Very Wide range of production Capacity for Powder Coatings Section from 25 Kg/ hr. To 1500 Kg/Hr. Machines.
  • Very strong design back up all machines technology upgradation.

Technical Specifications



Model No.

Screw dia.mm

L/D ratio

Main motor Kw

Feed motor Kw

Heaters Kw

Max. RPM of screw

Do/Di ratio

Typical output range kg/hr

CTSE-24

24

18

5

0.37

4

700-900

1.66

25-40 kg/hr

CTSE-52

52

18

22

1.5

8

500-600

1.62

200-300 kg/hr

CTSE-52-A

52

20

37

3.75

12

800-900

1.62

250-500 kg/hr

CTSE-60

60

20

55

5.6 twin

16

500-650

1.66

400-750 kg/hr

CTSE-68

68

20

75

7.5 twin

20

600-800

1.70

900-1500 kg/hr

The output shown here is indicative only, it may vary depending upon formulation & working conditions. Also the table shows Output data for Powder Coatings Powder manufacturing only, for other products capacity may vary.

However we can produce the Twin screw extruders with LD of upto 40 for any of the size mentioned above, or as per customer need as per final product requirements.
