Pre Mixer

Pre Mixer
Pre Mixer
Product Code : 01
Product Description

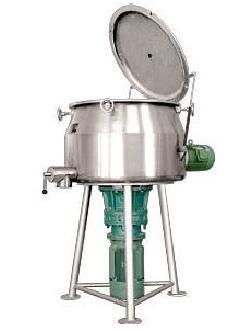

Pre Mixer

Advantages

  • Very low power consumption at the time of mixing time is very low
  • Batch capacity 50-400 kg. (P-50, P-100, P-400).
  • Easy & Fast cleaning possible because of very less contact parts.
  • Easy operating and low maintenance.
  • Mixing Time adjustable for different formulations.
  • Compact Design for better space utilization.
  • Light structure but still vibration free operations.
  • Light weight top cover for easy handling.
  • Easy clamps for fast operations.
  • Interchangeable mixing blades.
  • Specially designed for powder coatings manufacturing plants .
  • Pneumatic operated Valve for easy & fast opening & closing.
  • All Contact Parts MOC SS304 for better cleaning & long life.

Technical Specifications

Model

P-400

P-200

P-100

P-50

Overall Width mm

1800

1250

1100

850

Max. feeding height mm

1500

1500

1400

1250

Overall height mm

1750

1750

1550

1350

Approx. Wt. Kg.

1400

1000

650

350

Technical Data

Main motor HP

30 hp

20 hp

10 hp

7.5 hp

Speed of mixing Blades rpm

190 rpm

190 rpm

190 rpm

210 rpm

Batch Capacity

400 kg.

200 kg.

100 kg.

50 kg.

Mixing Time

3-5 Mints.

3-5 Mints.

3-5 Mints.

3-5 Mints.

Size of main Container DxH

1250x500

1000x500

780x490

500x450
