Laboratory Kneader

Laboratory Kneader
Laboratory Kneader
Product Code : 01
Product Description

Laboratory Kneader

The Clarion make laboratory Kneader PCS 30 is a versatile, compact small scale compounding extruder for research and development, color / shade matching and customer sampling. This easy, economical, user-friendly laboratory kneader offers similar process characteristics as production scale PCS series machines. Samples from 300gms up to 40 kg/h. Based on its process scale-up capabilities it qualifies as a universal laboratory compounder offering a high grade of efficiency and flexibility.

Standard Features and Advantages

  • Representative data from laboratory samples
  • Throughput rates up to 20 - 40 kg/h

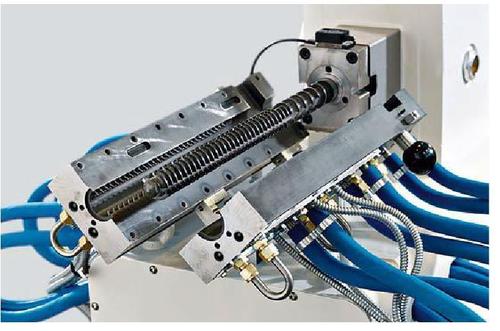

  • Standard Split barrel design for easy access and cleaning, easy maintenance
  • Fine temperature control with independent heating Cooling Zones
  • Standard segmented screw, Liners for easy replacement of wear parts
  • variable screw speed to match desired properties
Technical Data

Inlet Hopper volume

1 litre

Process length ration

11 L/D

Screw diameter

30 mm

Screw speed up to

500 rpm

Drive capacity

5.5 kW

Temperature control

Temperature range up to

140°C

Heating capacity

6 kW

Heating media

Electrical

Cooling media

Water

Dimensional data (without Chill Rolls & without volumetric feeder)

Feeding height

1400 mm

Discharge height

1200 mm

Overall sizes (L x W x H)

1450 x 600 x 1400 mm

Machine Mounted on Table (consist of Heating Cooling unit)

Table Sizes (L x W x H)

1200 x 600 x 600

Main Supplied Components with machine

  • Inlet hopper
  • Complete barrel assembly with Screw Elements & Liners set fitted on barrel
  • Operator panel with all standard accessories
  • Discharge die with cooled chute
  • Gearbox with Motor drive

Optional Fittings

  • Volumetric Feeder
  • Chill rolls


CLARION ENTERPRISES
An ISO 9001 : 2008 Certified Company
J- 9/6, MIDC Ambad, Nashik - 422010, Maharashtra, India
Mr. Ramesh V. Jadhav (Partner)
