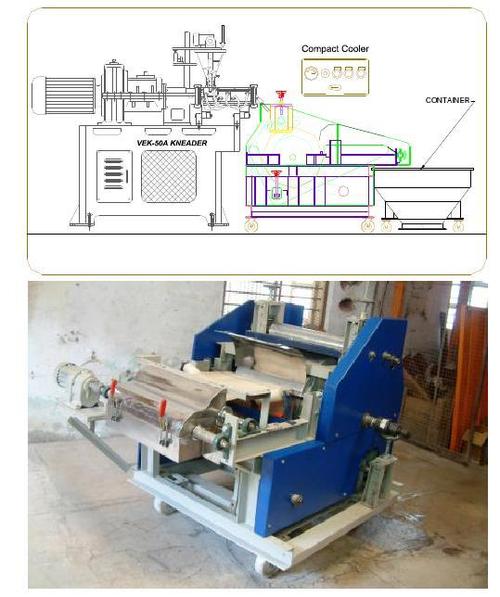

Compact Cooler

Compact Cooler
Compact Cooler
Product Code : 01
Product Description

Compact Cooler

Advantages

  • Film thickness can be easily adjusted.
  • Cooling capacity ranges from 50-1000 kg/hr.
  • Easy operating and maintenance.
  • Compact Design for better space utilization.
  • Light weight & Hard Chrome plated Rollars for easy & fast leaning.
  • Wheel mounted for easy movement.
  • Long life PU Coated belt.
  • Spring loaded belt, to ensure equal film thickness.
  • Max. temp. at inlet on belt is 90 Deg. Celsius

Technical Specifications

Model

CCC-9/27

CCC-11/55

CCC-21/125

Overall Sizes




Overall Length

1250mm

1900mm

4200mm

Overall Width

750mm

1350mm

2000mm

Max. feeding height

600mm

1050mm

1650mm

Overall height

850mm

1050mm

1750mm

Squeezing roll dia.

89mm

112mm

210mm

Cooling roll dia.

270mm

550mm

1250mm

Width of cooling roll

300mm

500mm

1000mm

Max. Container Ht. at Discharge

400mm

550mm

1050mm

Roller motor

0.5HP

1.0HP

3HP

Sq. rollar Motor

0.5HP

1.0HP

2HP

Speed of roller

3rpm

5rpm

8rpm

Crusher motor

0.5HP

1 HP

2HP

Output Capacity

50-60 kg/hr

150-200 kg/hr

700-1000 kg/hr

Cooling water temp. deg. Cel.

Max. 10deg

Max. 10deg

Max. 10deg

Cooling water consumption /min.

Min. 30 lt

Min. 120 lt

Min. 350 lt

Also available CCC-16/75 for 300-400 kgs. / hr. output machines.
