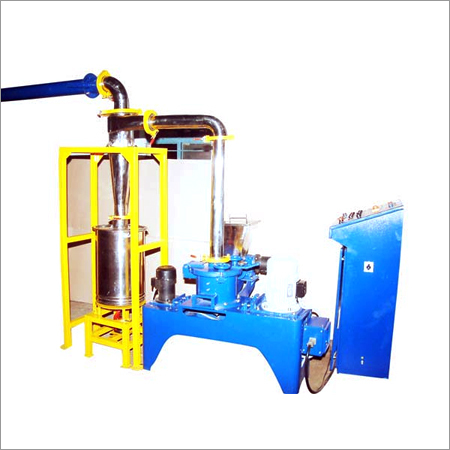

Air Classifying Mill

Air Classifying Mill
Air Classifying Mill
Product Code : ACM 04
Product Description

Air Classifying Mill

We are notable manufacturer and exporter of Air Classifying Mill that is appreciated for high tensile strength, smooth operation, easy handling, low running cost and longer service life. Manufactured at our state-of-the-art manufacturing unit utilizing high grade components as per the set industry norms, this mill is widely demanded in the market. The entire range of Air Classifying Mill is available in different specifications and can be customized to meet the varied needs of clients at leading market rates.

Operating Principle of Air Classifying Mill:

The chips/flakes of material to be ground are conveyed from the hopper to the grinding chamber by means of variable feed screw. The grinding of material starts immediately when material enters in to the grinding chamber. (Because of high powered suction) The particle size of product / material is reduced to desirable size by grinding pins and liner. When the particles reach to its required size they will enter in to the air stream through baffle ring and classifier.

We can control the particle size by variable speed available both for feeding mechanism and classifier. Thus the oversized particles return into the grinding chamber for further reduction of particle size.

Salient features :

  • Dust free operation
  • High collection efficiency
  • Easy and fast cleaning
  • Reliable and consistent output
  • Grinding and classifying in one machine with on line adjustment
  • Wide range of applications
  • Economically priced
  • Output range from 50 kg/ hr. to 1200 kg./hr

Technical specifications

Model


CACM-10M

CACM-5

Drive

Main motor
Classifier motor
Feeder motor
Blower
Rotary Air Lock

10 hp
1.5 hp D.C
0.5 hp D.C.
15 hp
1 hp

5 hp
1 hp D.C.
0.5 hp D.C.
10 hp
0.5 hp

Output

Kg./hr

200-250 kg./ hr.

60-100 kg./hr

Speeds

Pin Plate
Classifier
Feeder

6000 rpm
30-3000 rpm
25-250 rpm

7800 rpm
30-3000 rpm
25-250 rpm

Air flow

Cu. Meters/hrs

2800

1200

Weight of m/c.
(With Dust Collector)

Approx.

1150 kg

500 kg
